Expansion Joint
ASTA Expansion Joint is a versatile expansion joint that can be used at standard temperatures, and is also designed to be dressed with seals for applications over 300°F. Placed above the packer, their telescoping design reduces the possibility of the tubing and completion equipment being deformed due to extreme temperature changes in the tubing string. ASTA expansion joints are equipped with specially machined, high-temperature, V-type seal rings with a unique anti-extrusion ring that prevents extrusion of the packing at elevated temperatures. These tools maintain the pressure integrity of the tubing and allow the string to safely expand and contract. The expansion joint can be manufactured to any length to suit operating requirements and to allow safe installation and retrieval of the tubing string and completion components
Features and benefits:
- Withstands large temperature variations
- Allows torque to be transmitted through joint
- Eliminates potential leak paths
- Reliable operation over temperature extremes
- Safer installation and retrieval
- Full-tubing ID through expansion joint
- Manufactured to customer requirements
| Item | Descriptions | Part No. | |
|---|---|---|---|
| 2-7/8 | 3-1/2 | ||
| 1 | Splinted Mandrel : w/ Pin Thread Connection | 27-280-01 | 35-280-01 |
| 2 | Body : w/ Box Thread Connection | 27-280-02 | 35-280-02 |
| 3 | Body Head : Stopper Mandrel | 27-280-03 | 35-280-03 |
| 4 | Body Head : Latch-On Stopper spacer | 27-280-04 | 35-280-04 |
| 5 | Bar Key | 27-280-05 | 35-280-05 |
| 6 | Hex Set Screw | 27-280-06 | 35-280-06 |
| 7 | Seal Group | 27-280-07 | 35-280-07 |
| Tubing | Dimensional | |||||
|---|---|---|---|---|---|---|
| Size (in) | Weight (PPF) | Min Casing Size | Max. Tool OD (in) | Drift Dia. (in) | Stroke (ft) | |
| OD (in) | Weight (PPF) | |||||
| 2-7/8 | 6.5 | 5-1/2 | 15.50 | 4.000 | 2.347 | 4 |
| 6 | ||||||
| 3-1/2 | 9.3 | 6-5/8 | 20.00 | 5.000 | 2.867 | 8 |
| 10 | ||||||
*) other size and specification are available based on request

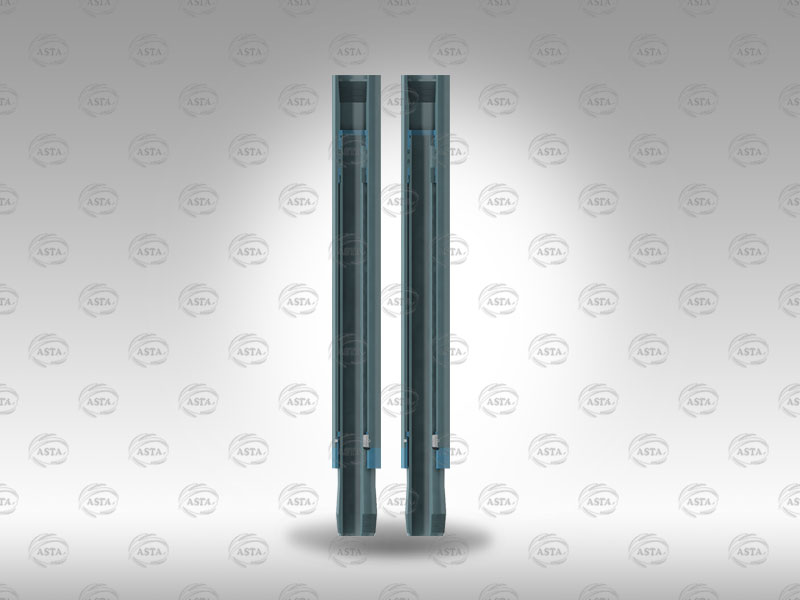

Product Picture
